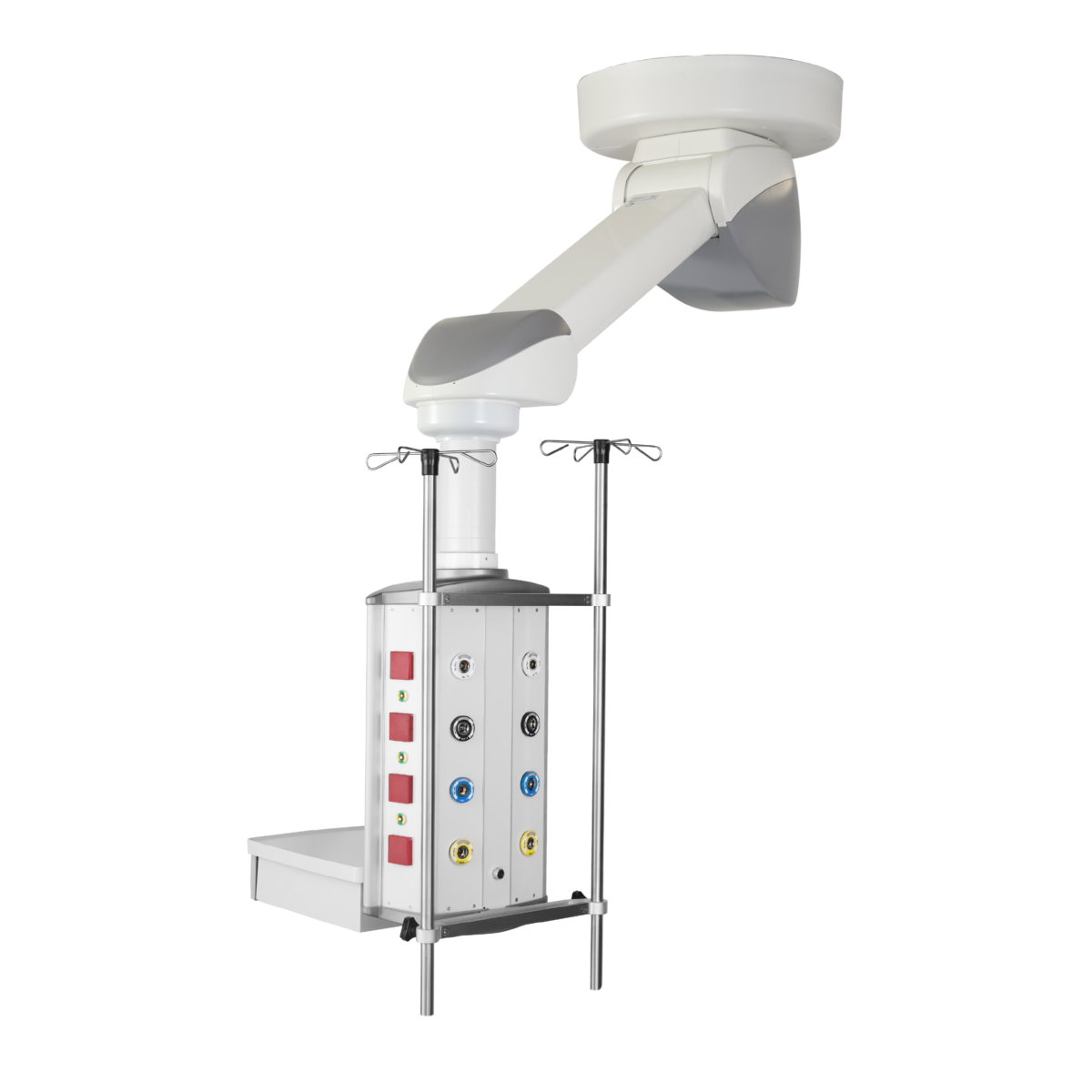

Motorized Ceiling Supply Unit FX40.15M
Equipped with motorized functionality, this pendant system improves accessibility and enables precise transport and positioning of medical equipment. Its durable arm ensures high load capacity and dependable support in demanding clinical environments.
Medical pendant systems are advanced solutions engineered to optimize clinical workflows, enhance patient safety, and maintain the highest hygiene standards in operating rooms and intensive care units.
Prices visible to registered customers only
Price excl. VAT, ex works (EXW) Neuss
Our experts are ready to offer you the most suitable solutions.
General Features
- Space Optimization: Ceiling-mounted design provides more floor space and a tidy environment
- Ergonomics and Accessibility: Movable arms with adjustable height and rotation for precise positioning and easy access
- Integrated Supply Lines: Equipped with medical gas connections and power outlets for seamless supply management
- Improved Workflow Efficiency: Keeps equipment neatly organized and enhances team coordination
- Hygiene and Infection Control: Reduces cable clutter and facilitates cleaning to ensure a sterile environment
- Flexibility and Adaptability: Modular design for easy adjustments and expansions
Technical Specifications
| Technical Specifications | |
|---|---|
| Model | FX40.15M |
| Department | OR |
| Arm Type | Single Arm |
| Arm Length | 1000 |
| Total Length in mm | 1000 |
| Length up to | 1600 |
| Load Capacity in kg | 110 |
| Load Capacity with E-Brake in kg | 250 |
| Vertical Load Newton | 2195 |
| Load Capacity in lbs | 330 |
| Brake System | Pneumatic Brake |
| Magnetic E-Brake | Yes |
| Rotation angle ceiling | 340° |
| Intermediate Bearing | 340° |
| Rotation Angle Telescopic Tube | 340° |
| Height Adjustment | 820 mm (20° upward, 40° downward movement) The upper limit can be restricted |
| Color | |
| Electrical protection class according to IEC 60601-1 | Class 1 |
| Classification according to 93/42 EU and 2017/745 EU | Class 1 |
| IP classification | IP 20 |
