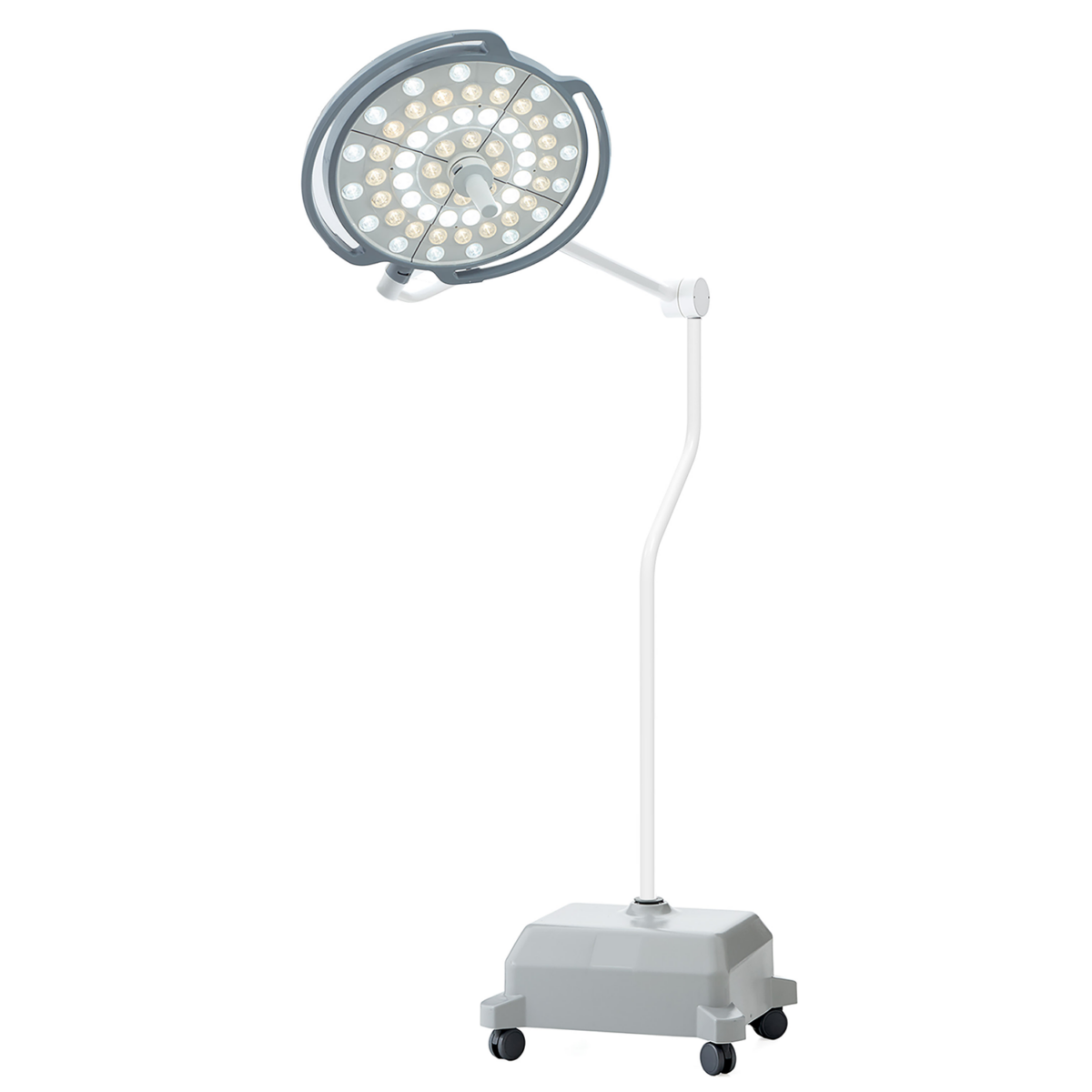

Mobile surgical light with battery LD05.06
INSPITAL LED operating lights meet all surgical lighting requirements of operating rooms. The new generation LED technology helps surgeons to clearly operate and see the surgical area. INSPITAL LED lights can be adapted to any size of operating rooms, including large hybrid types with a variety of models and combinations.
Prices visible to registered customers only
Our experts are ready to offer you the most suitable solutions.
General Features
- Mobile Surgical Light
- Emergency and Field Operations
- Outpatient Procedures
- Space-Saving Solution
- Cost-Efficient Mobility
- The Battery Backup System Provides 2.5 Hours of Power
Technical Specifications
| Technical Specifications | |
|---|---|
| Max. illumination intensity at 1 m: | 160,000 Lux |
| Diameter of Light Head: | Ø670 mm |
| Color Temperature: | 3000 K - 5000 K |
| Color Rendering Index, Ra CRI: | 96% |
| Dimming Range: | 1 - 100% |
| Lichtfelddurchmesser d10: | 24 - 36 cm/9.5”-14.2” |
| Lichtfelddurchmesser d50: | 13 - 28 cm/5.1”-11” |
| Number of LED Modules: | 60 |
| LED lifespan: | > 60,000 h |
| Turbulence Factor (Standard Value Max. 37.5%): | 29% |
| Depth of light volume L1 + L2 at 20%: | 130 cm / 51.2” |
| Tiefe des Lichtvolumens L1 + L2 bei 60%: | 76 cm/30” |
| IP protection | IP43 |
| Irradiance at nominal illuminance: | 510 W / m² |
| Battery: | Emergency power system provides 2.5 hours of power |
Downloads
Download Files
Exclusive downloads are only visible to registered B2B customers.
The Highlights.
Active Illumination Control
(AIC)
Inspital’s LED lighting technology ensures optimal illumination, even when parts of the light are obstructed by the surgical team. The AIC system automatically compensates for any light loss by adjusting the remaining LEDs in real time.
Multi-Function Handle Controls
In addition to focus control, the handle also allows adjustment of light intensity, color temperature, and zoom functions. Simply use the touchscreen to select which parameter you want to control via the handle.
Communication Synchronization
Touchscreen Control Unit
The intuitive 4.3-inch LCD touchscreen allows effortless control of all functions through simple taps and swipes on the interface icons.
Wall Panel
The wall panel unit enables surgeons to control the light heads and access all functions of the touchscreen control unit directly from the wall.
Laser Positioning Guide
Auto-Light Function
When activated, the Auto-Light function maintains constant central light intensity — regardless of height, angle, or obstacles — using PID (Proportional-Integral-Derivative) control.
