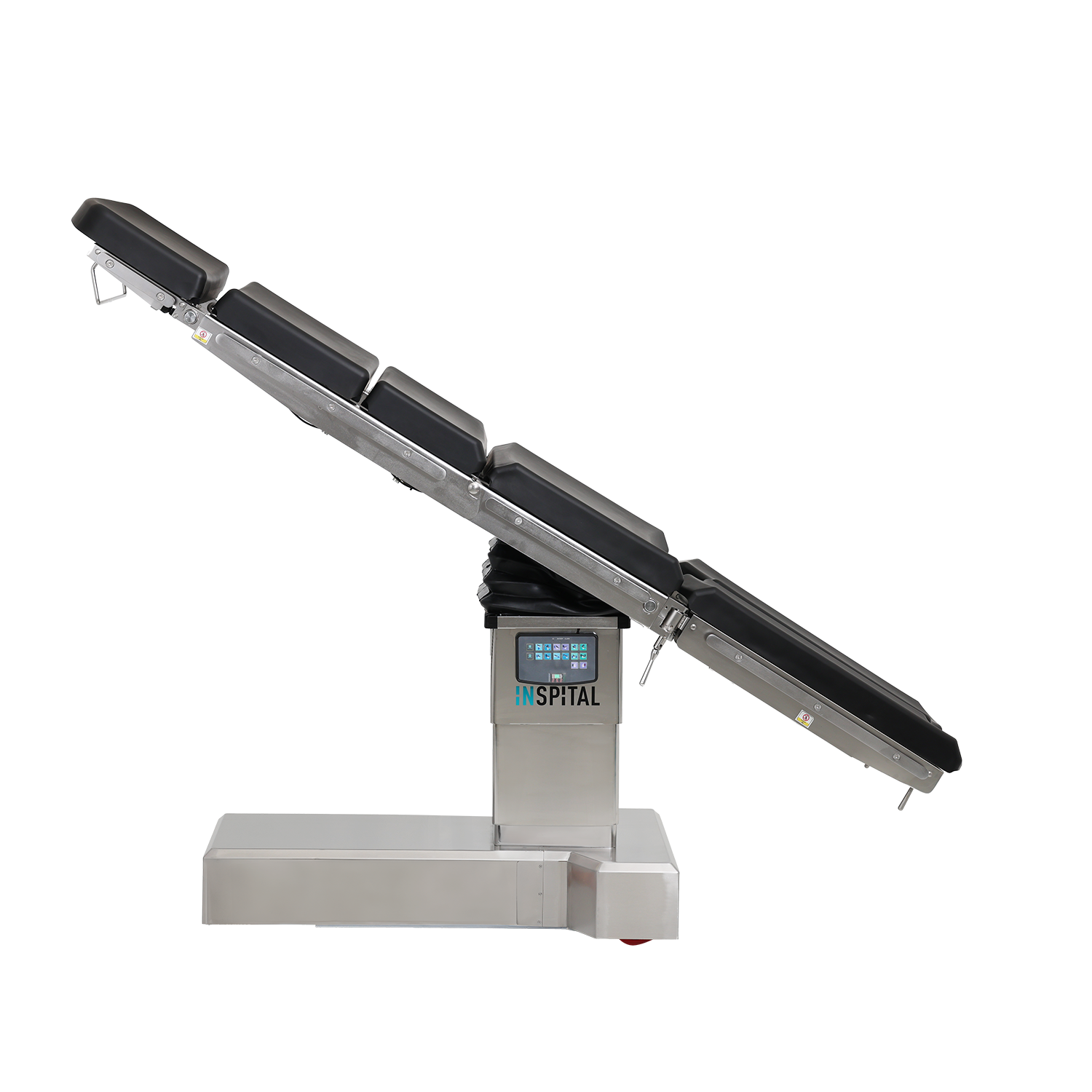

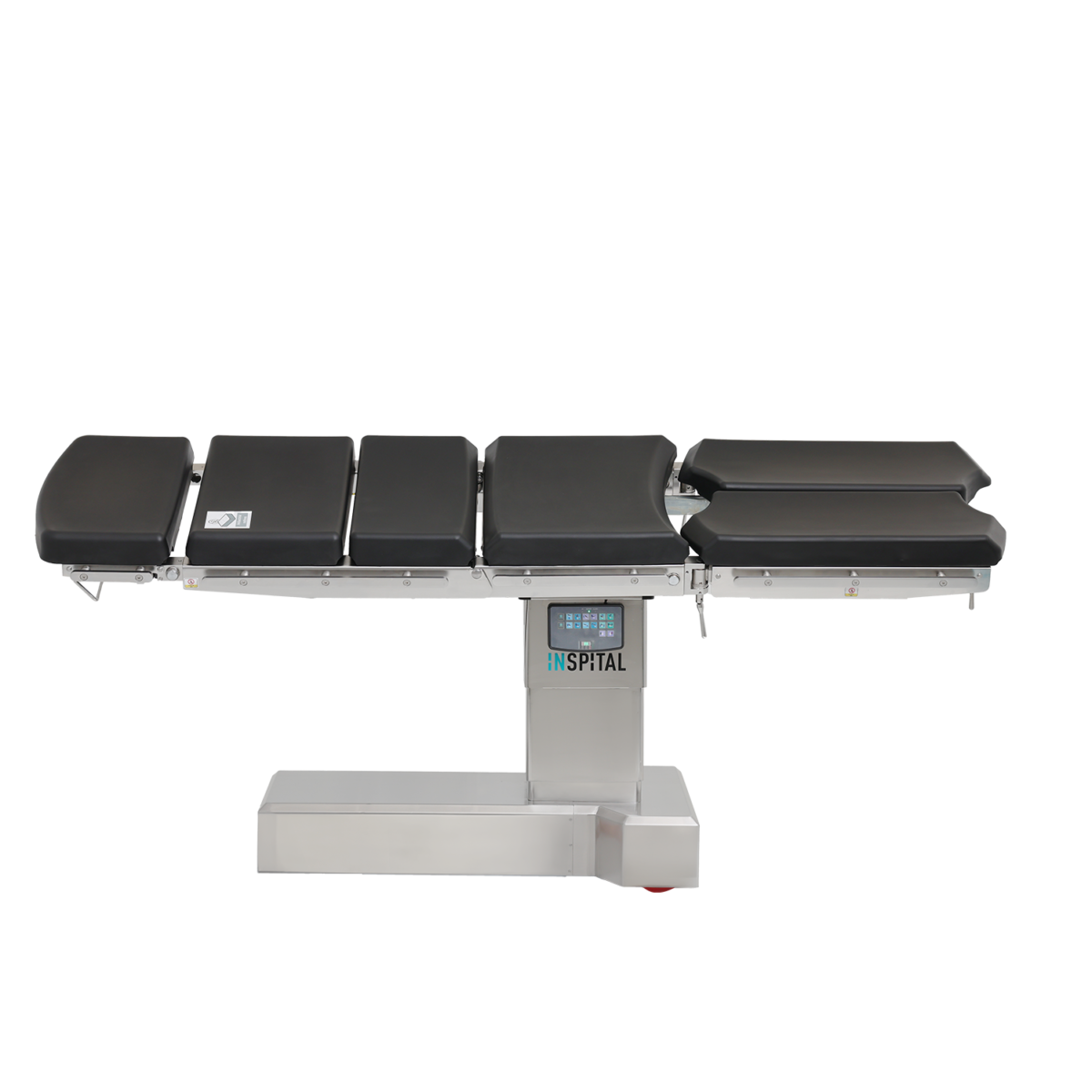

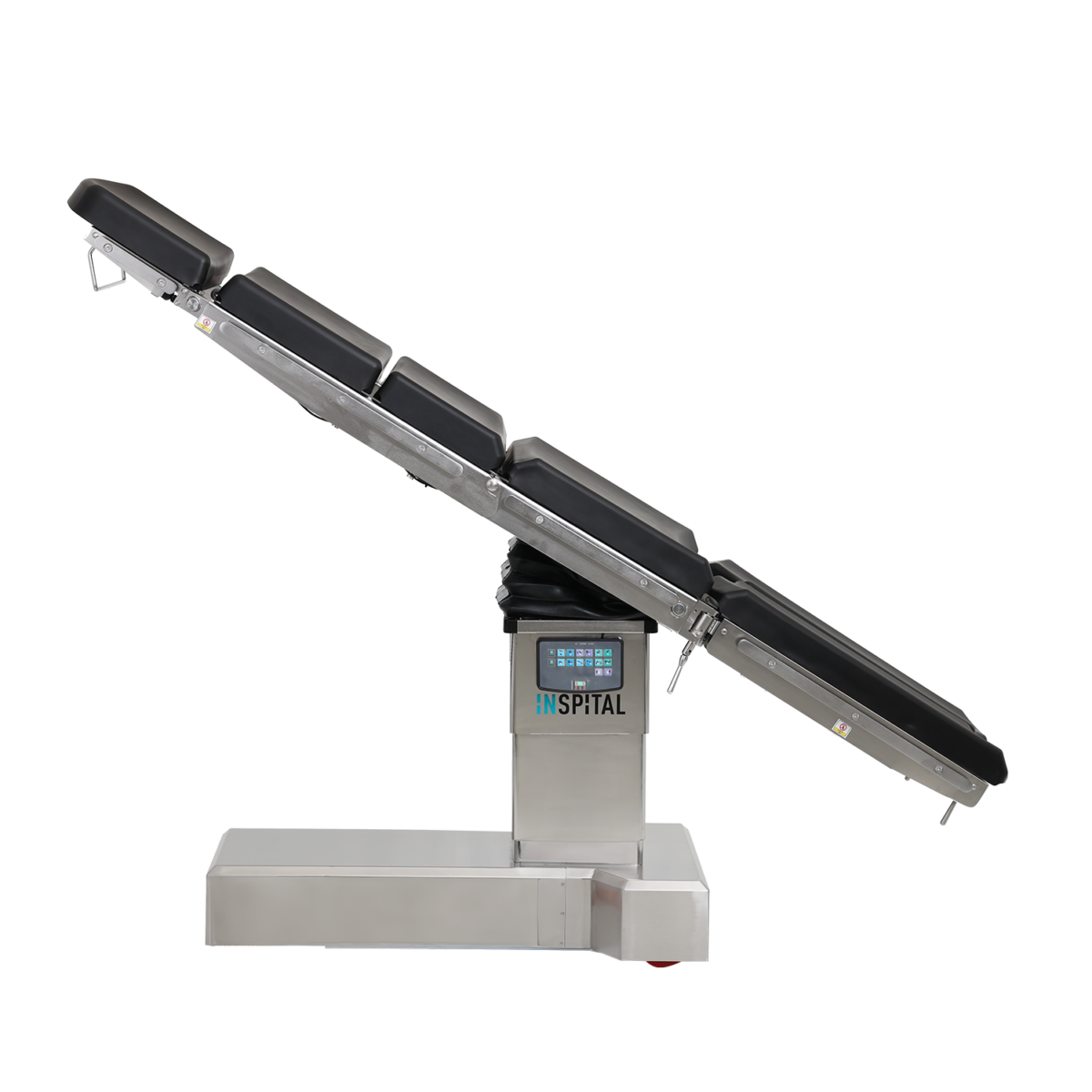

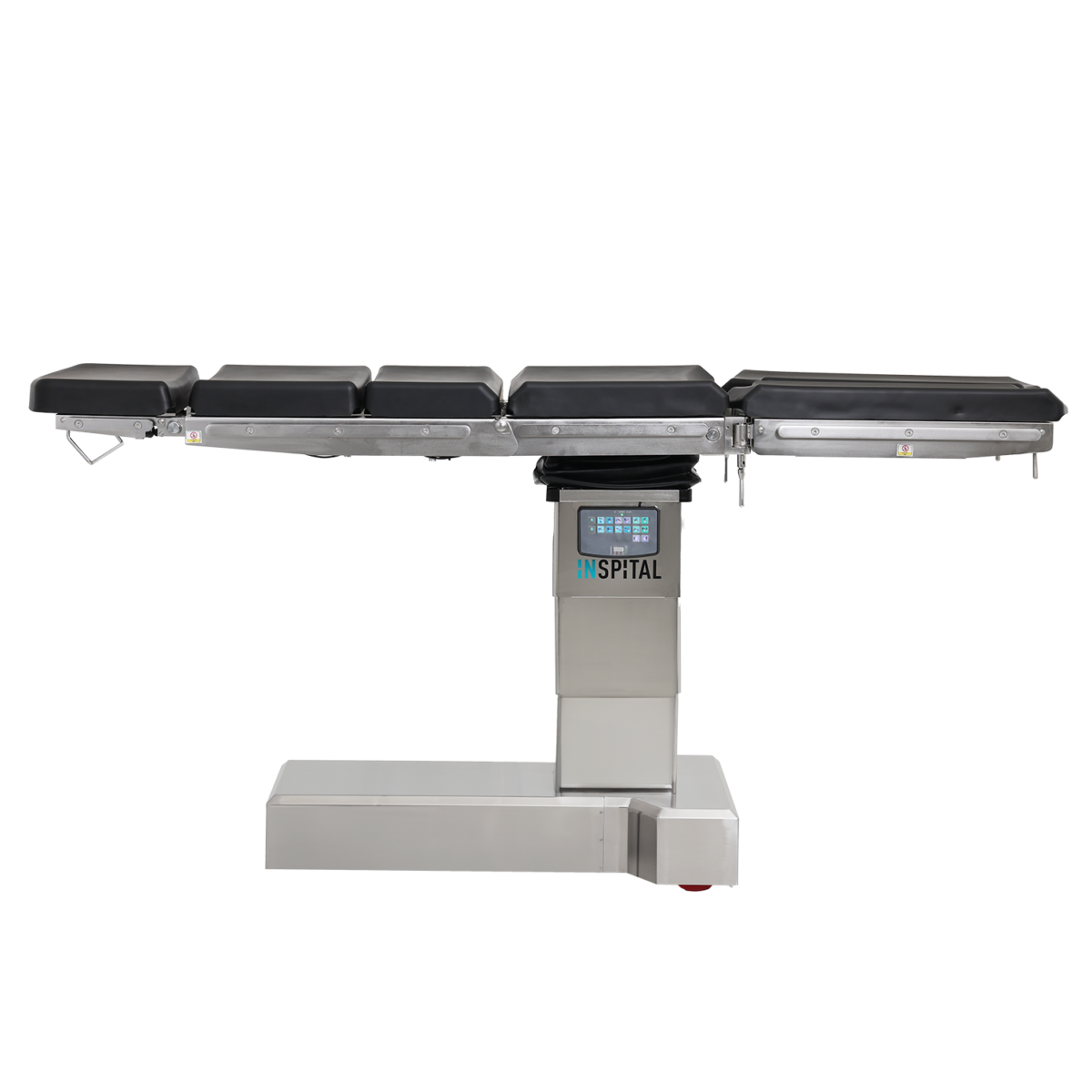

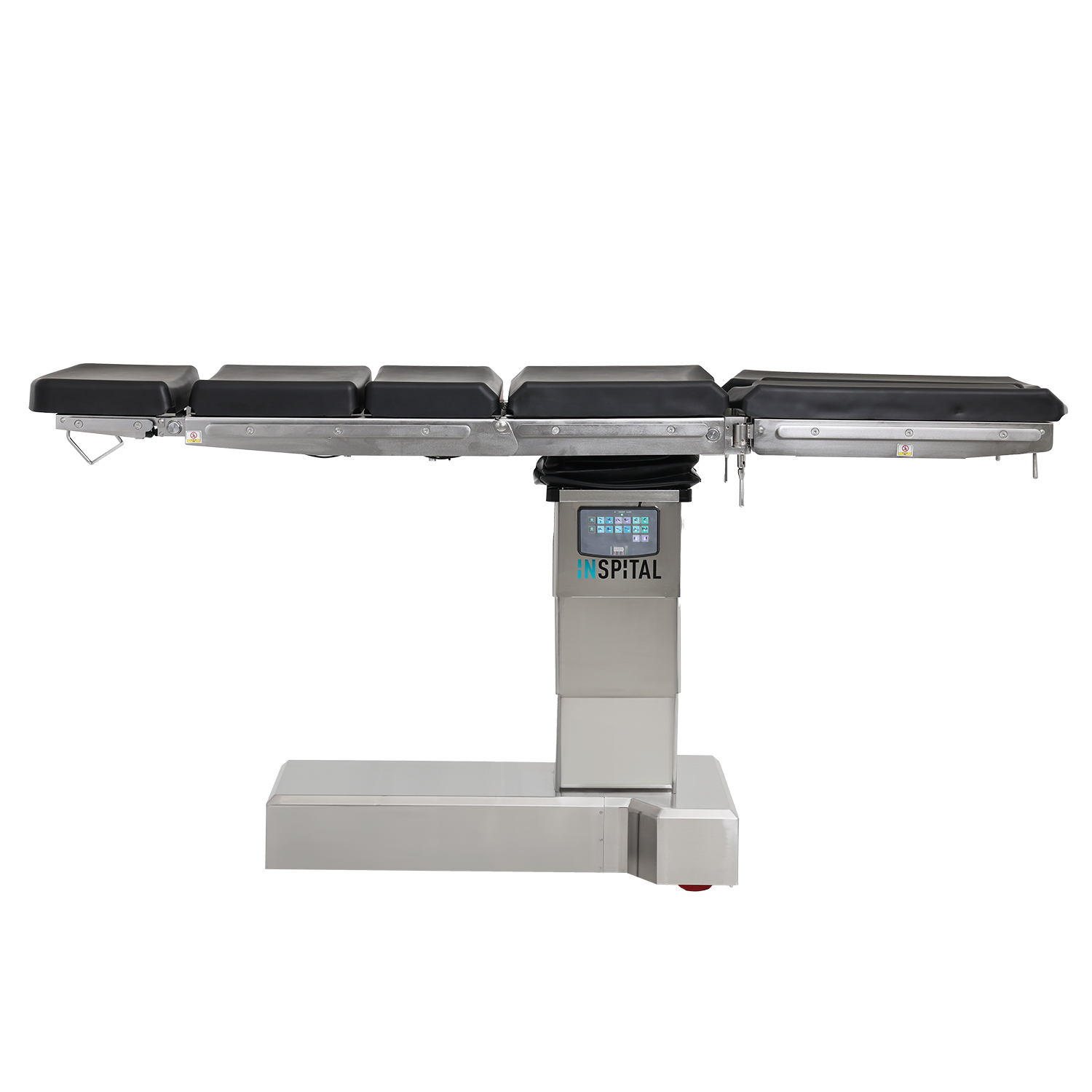

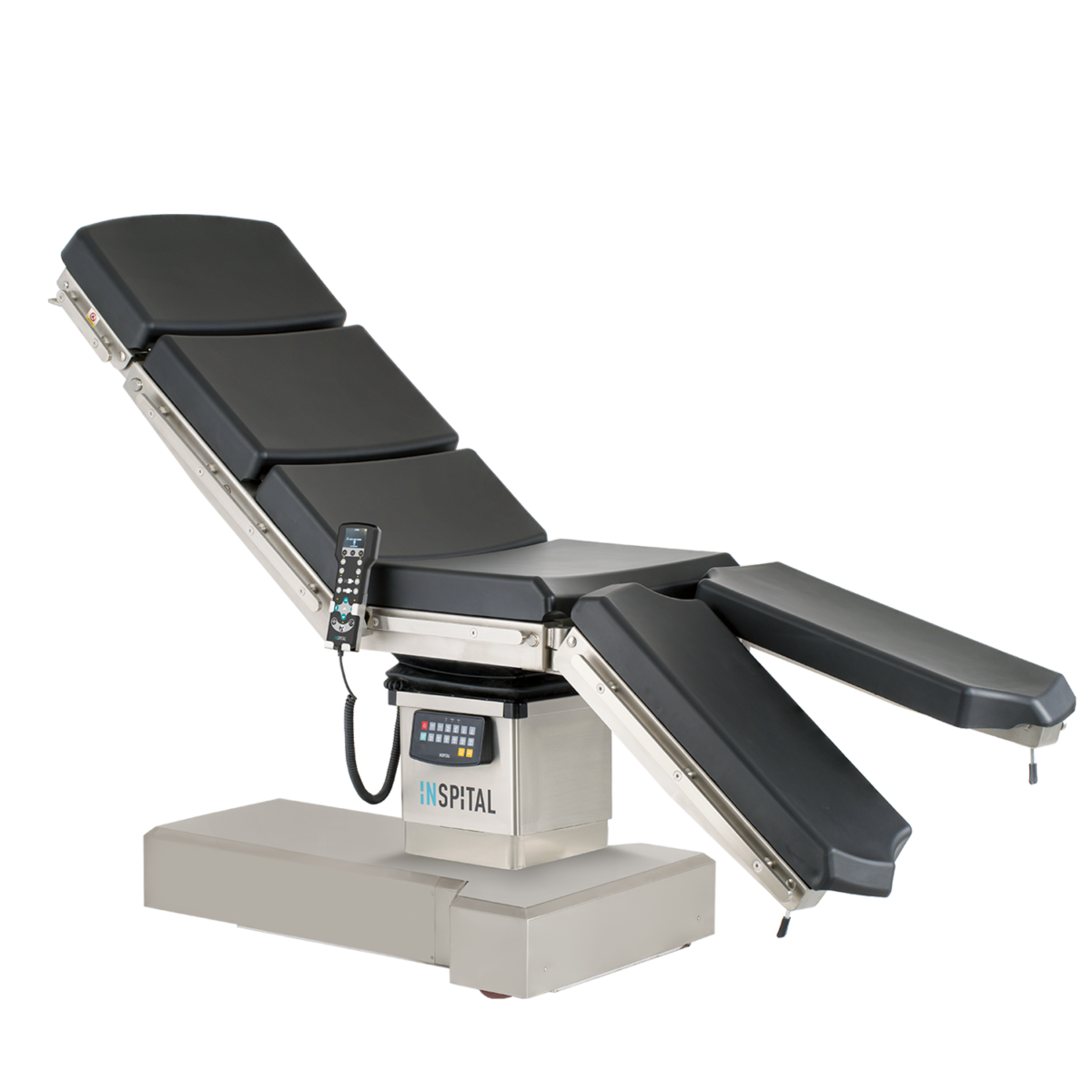

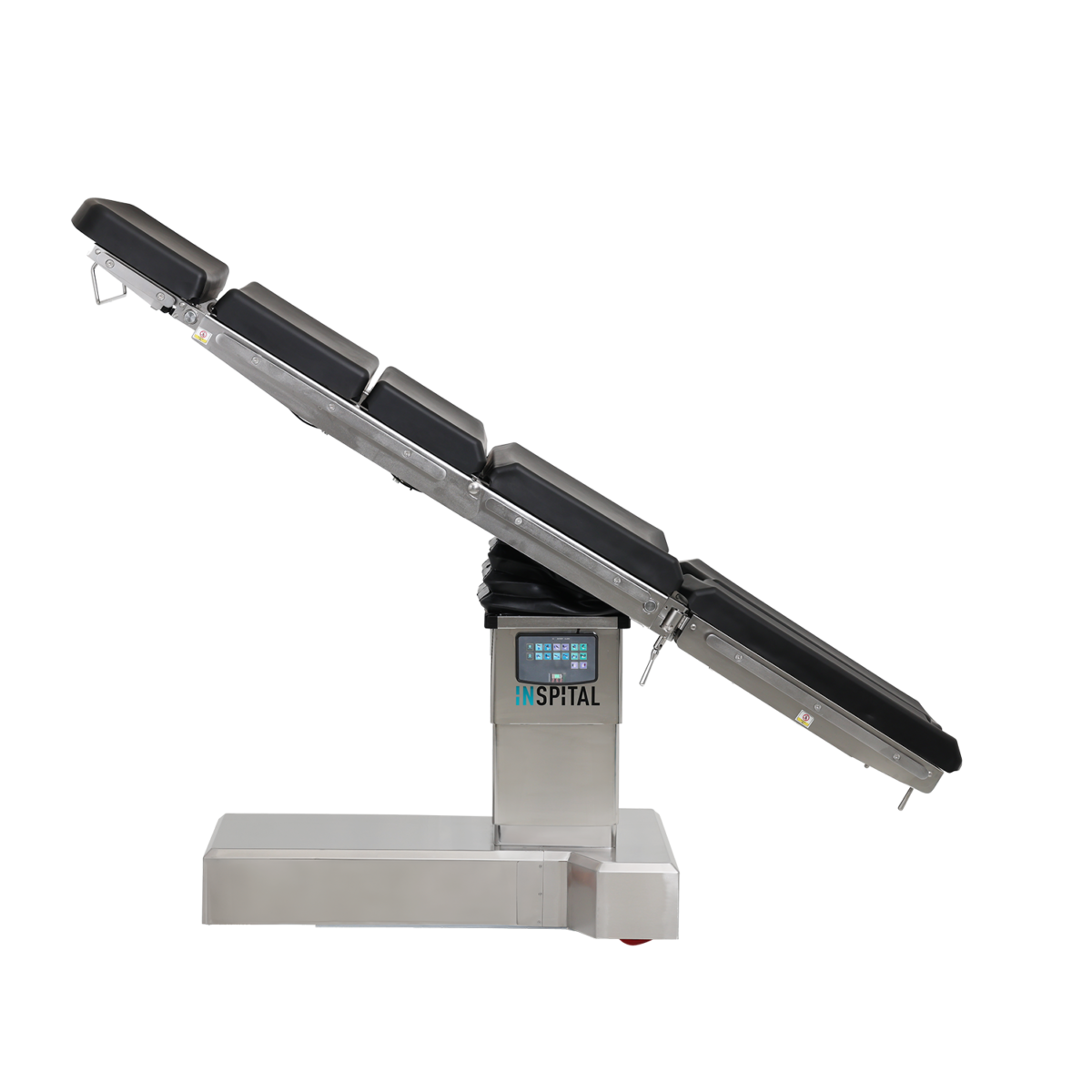

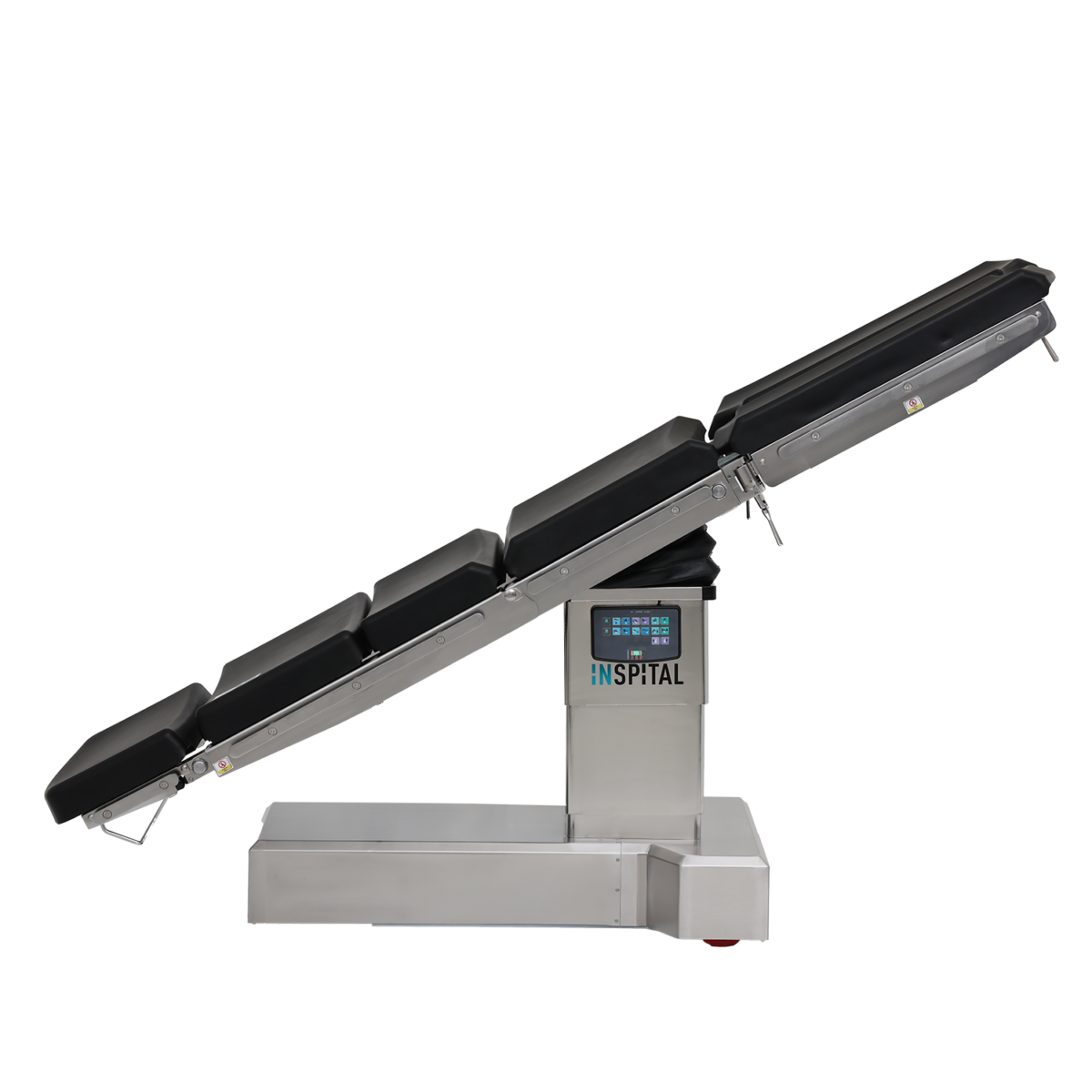

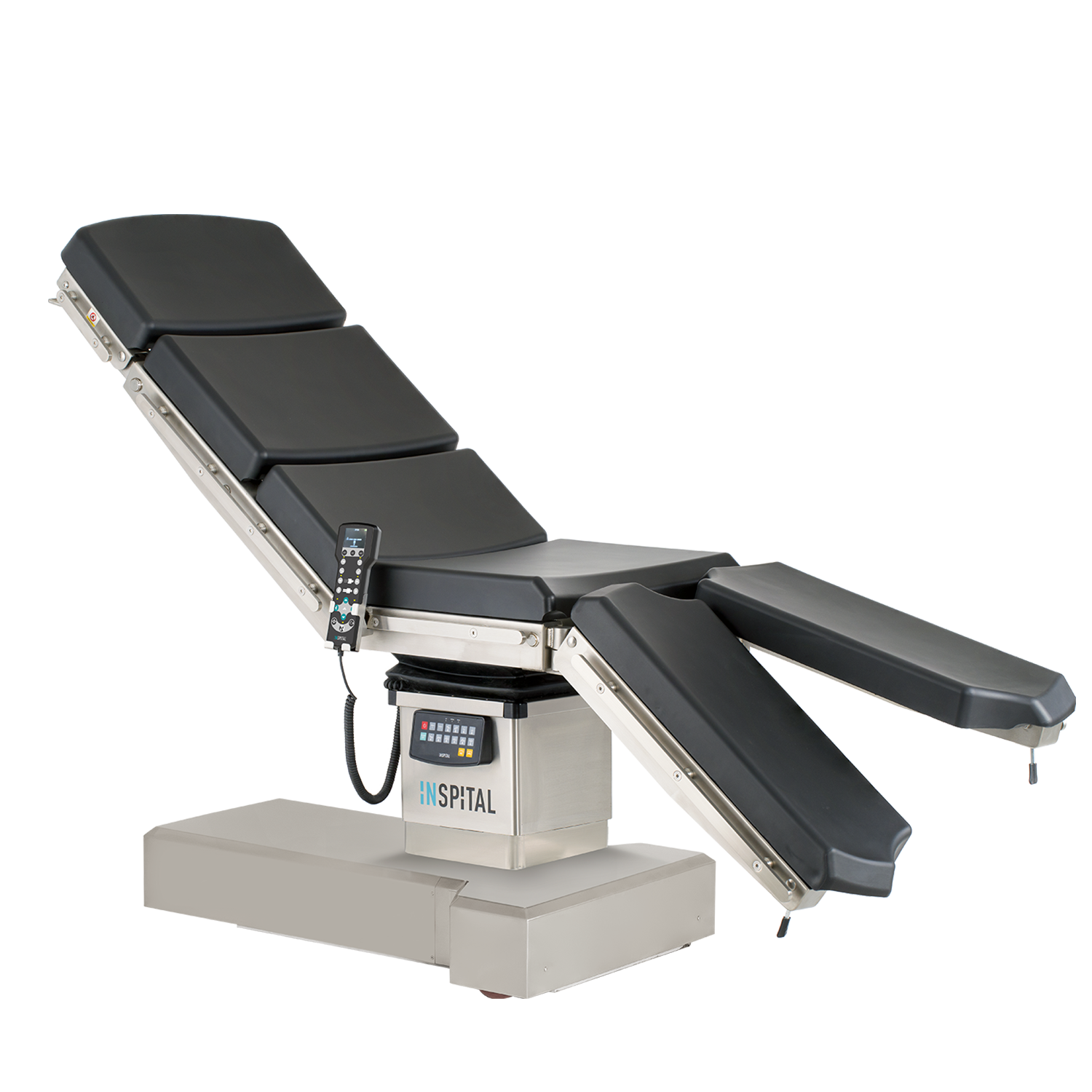

Operating Table OT80.20 NOVUS
Inspital operating tables are engineered to meet the full range of surgical requirements in modern operating rooms, featuring powerful and reliable electro-hydraulic systems. The OT80.20 NOVUS offers a wide selection of accessories, ensuring maximum flexibility across various surgical disciplines.
Our experts are ready to offer you the most suitable solutions.
General Features
- Integrated Sensors
- Battery Status Indicator
- Customizable Memory Positions
- Key Lock Function
- Movement Angle Display
Technical Specifications
| Technical Specifications | |
|---|---|
| Model | OT80.20N |
| Sliding Movement | 300 mm |
| Lateral Tilt | +20° / -20° |
| Back Section Adjustment | +80° / -45° |

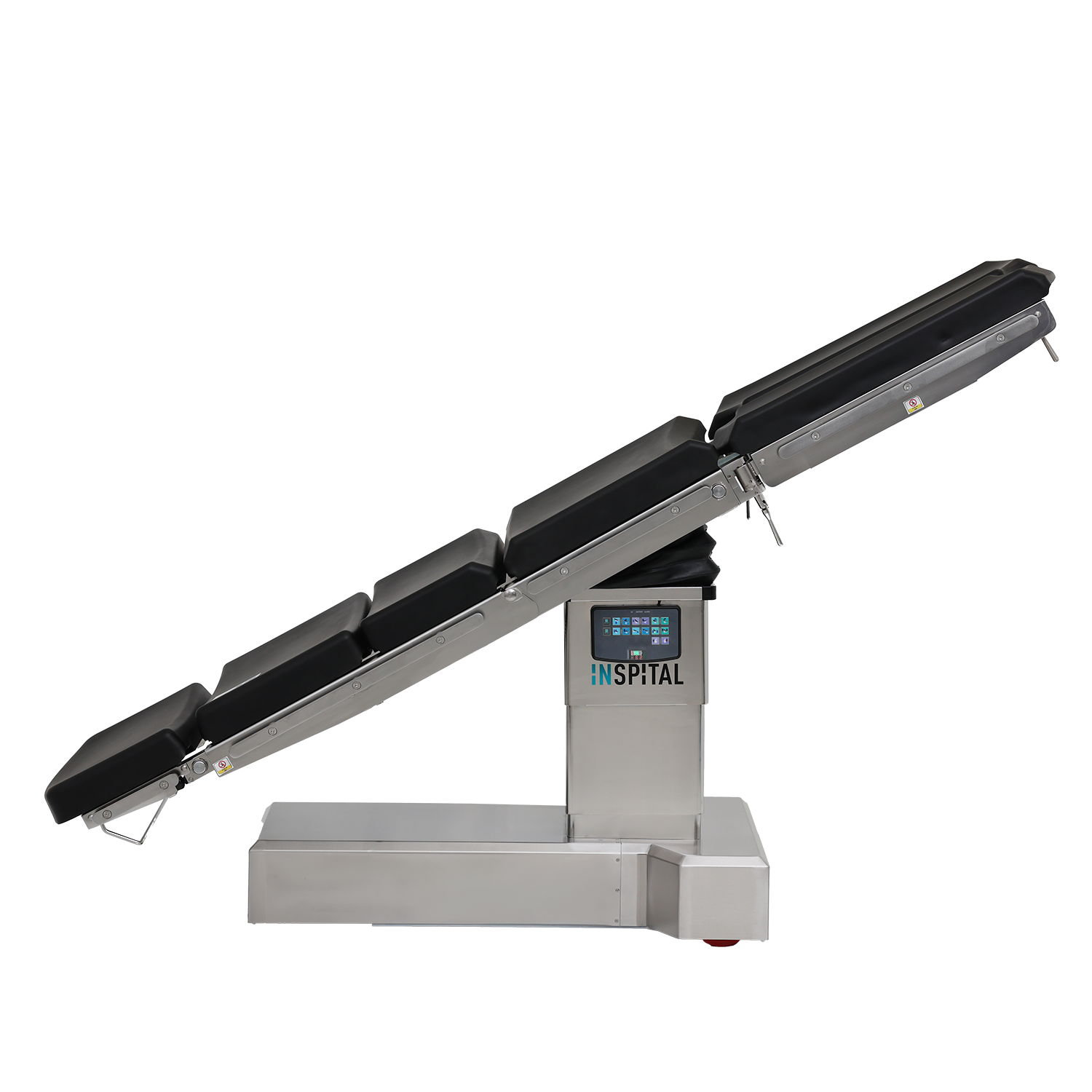

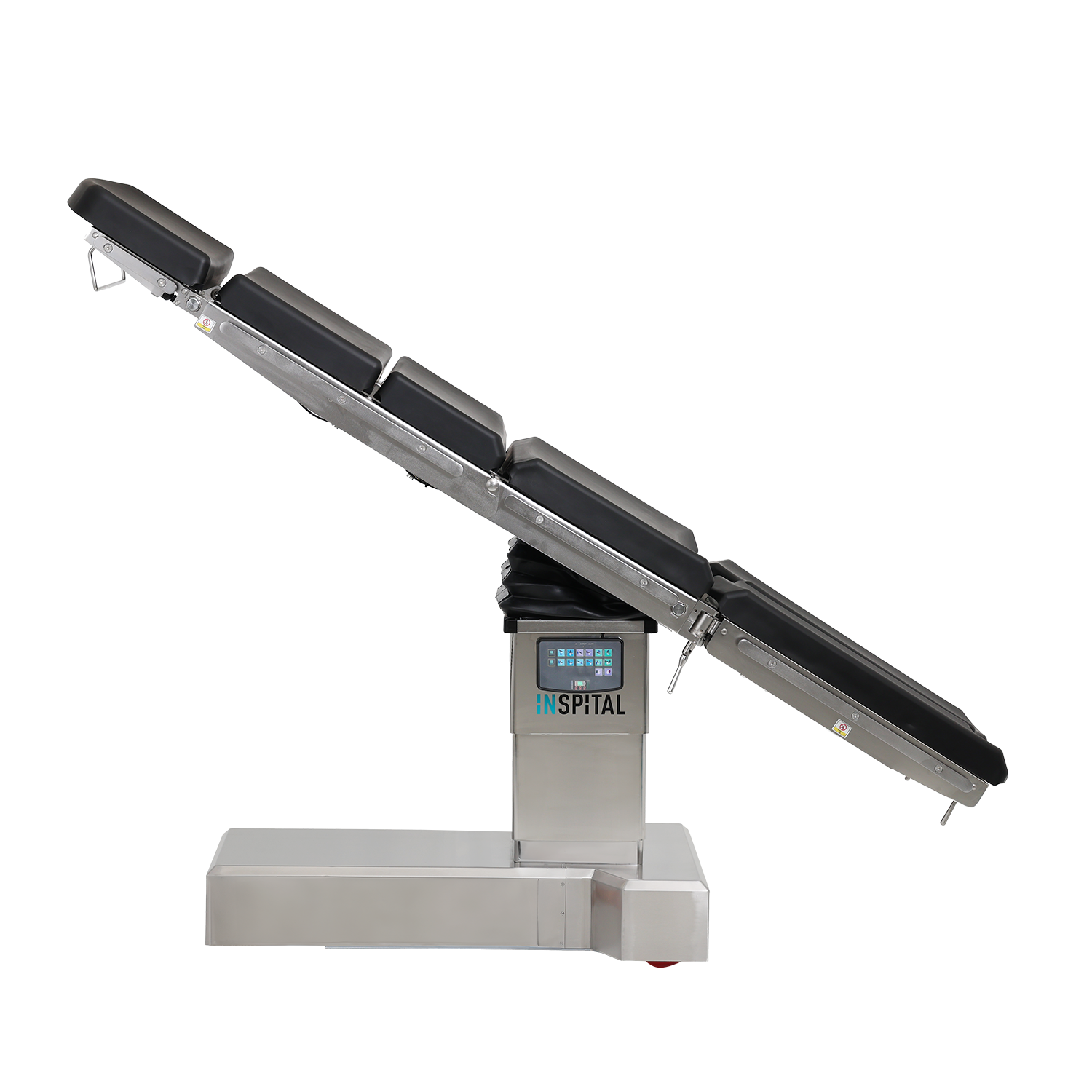

| Trendelenburg | -30° / +30° |
| Leg Section Adjustment | +50° / -90° |
| Head Section Adjustment | +30° / -50° |
| Flex / Reflex Position | +225° / -100° |
| Width x Length | 560 x 2200 mm |
| Height Adjustment | 595 - 1035 mm |
| Padding Thickness | 70 mm |
| Castors Ø | 100 mm |
| Maximum Patient Weight | 454 kg / 1000 lbs |
| Kidney Bridge | 140° (optional) |
| Visco Padding | Optional, OT80.20NV |
| Adjustments | |
|---|---|
| Height | Electrohydraulic |
| Back Section | Electrohydraulic |
| Trendelenburg | Electrohydraulic |
| Lateral | Electrohydraulic |
| Longitudinal Sliding | Electrohydraulic |
| Central Brake | Electrohydraulic |
| Headrest | Manual |
| Leg Plates | Manual |
Downloads
Download Files
The Highlights.

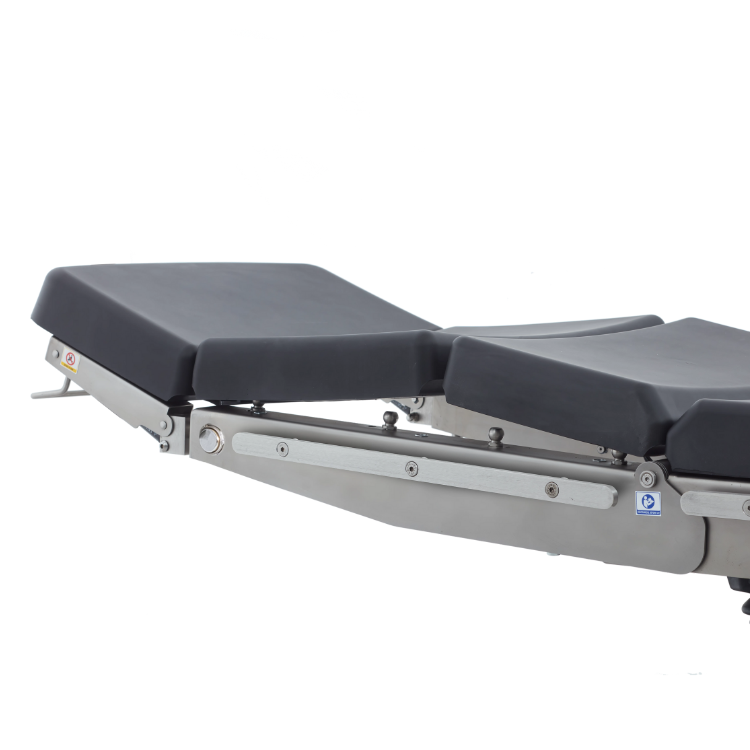

Kidney Bridge (Optional)
The integrated kidney bridge is adjustable up to 140° (165 mm) and allows for optimal positioning for corresponding surgical procedures.

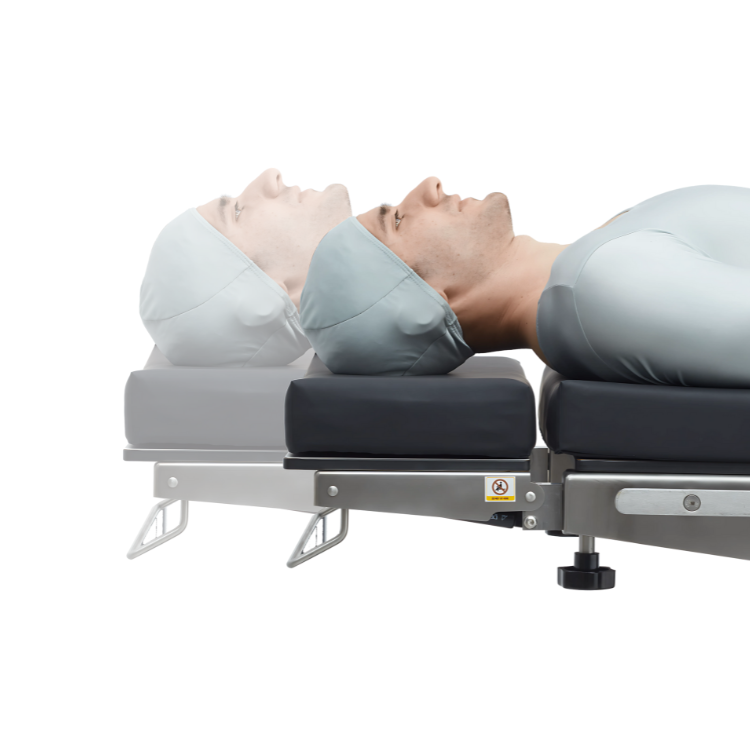

Longitudinal Shift Function
The 300 mm long longitudinal shift allows easy access for X-ray imaging without disturbing the sterile environment.

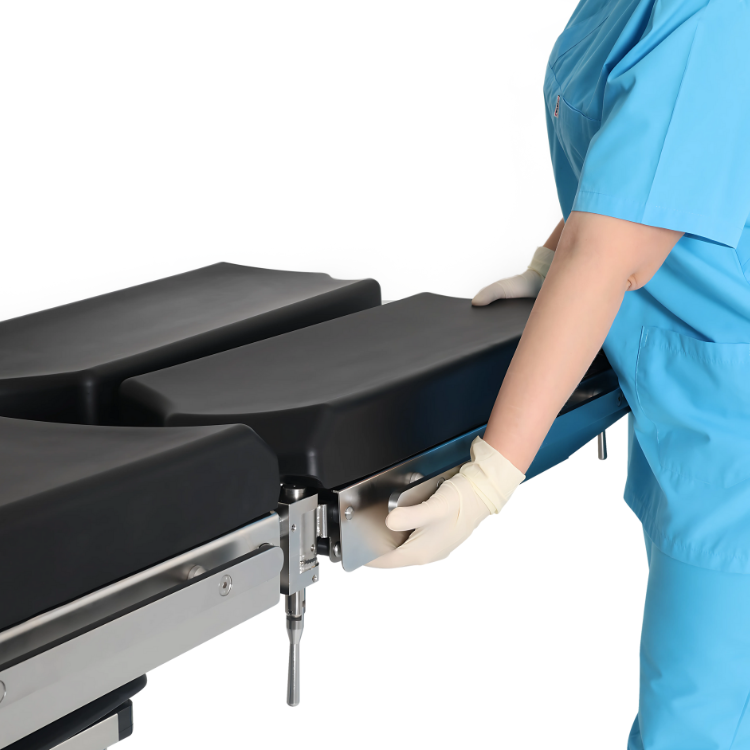

Functional Design
The in-hospital operating tables are designed to easily adapt to various surgical procedures and optimally meet the respective requirements.

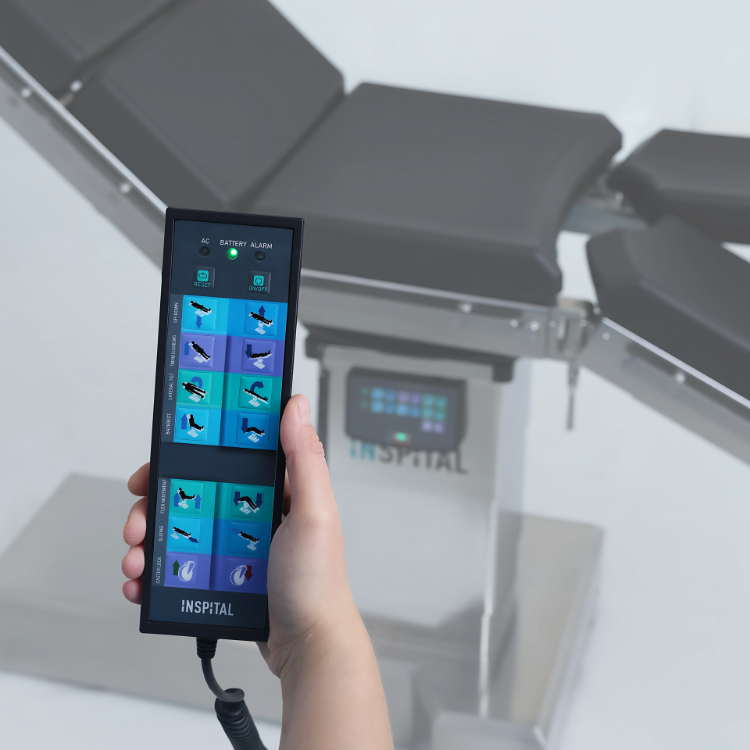

Multiple Control Units
• User-friendly hand and column controls
• 7 adjustable functions, including braking system
• 7 adjustable functions, including braking system

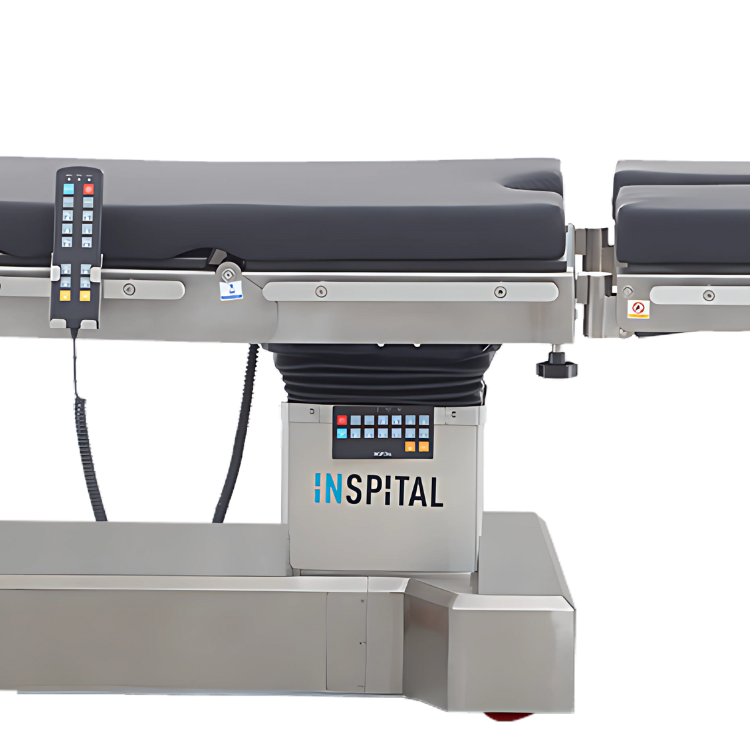

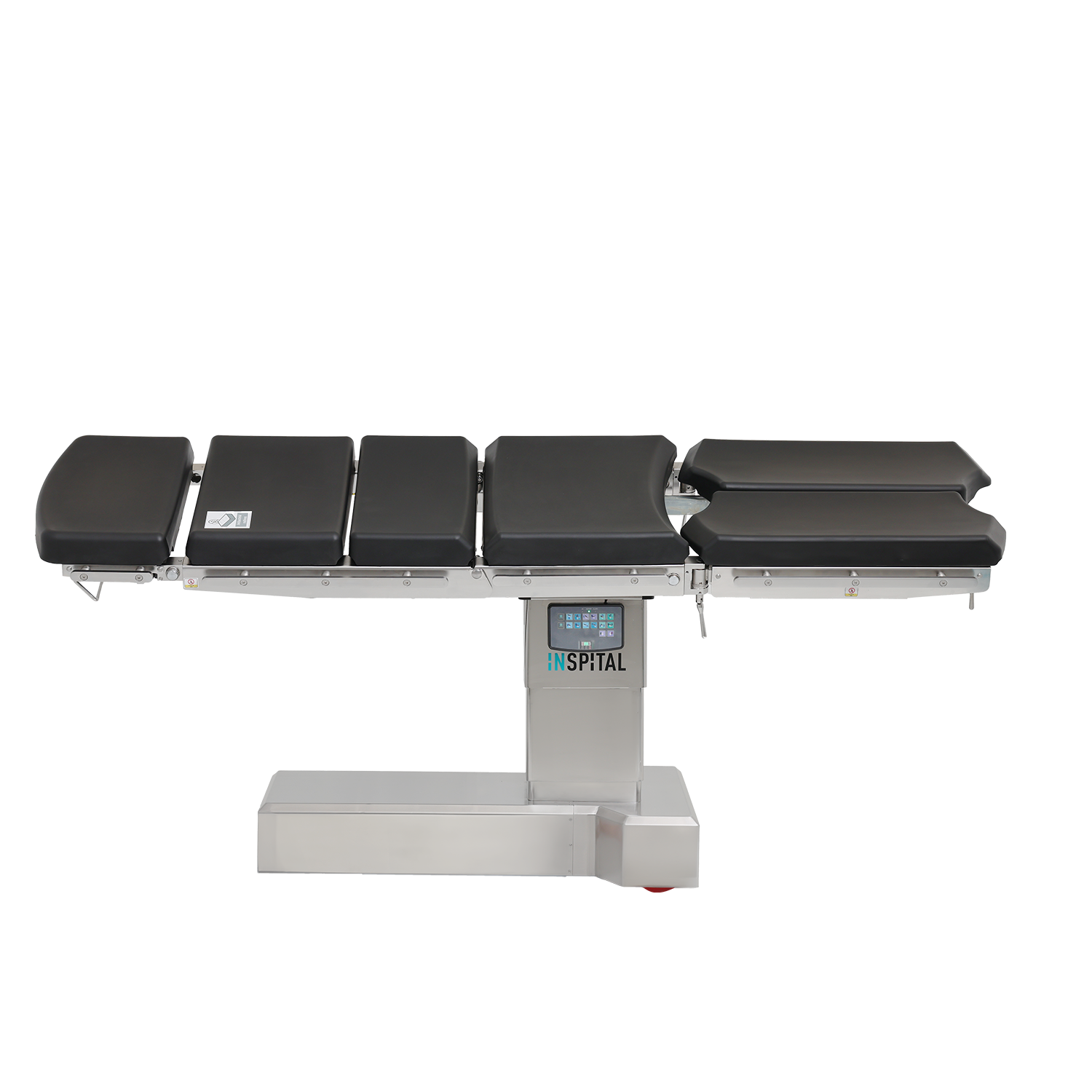

T-Base
The T-base provides optimal access for the surgical team and OR equipment. The corrosion-resistant stainless steel design ensures durability and reliability in demanding OR environments.

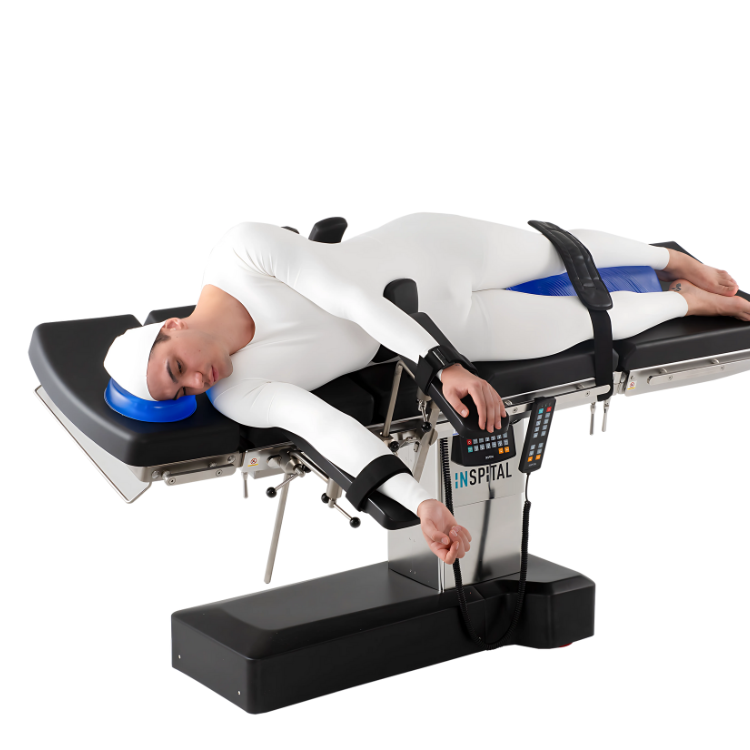

Ideal Access for C-Arms
The radiolucent tabletop enables high-quality imaging in all areas and facilitates access for the C-arm.

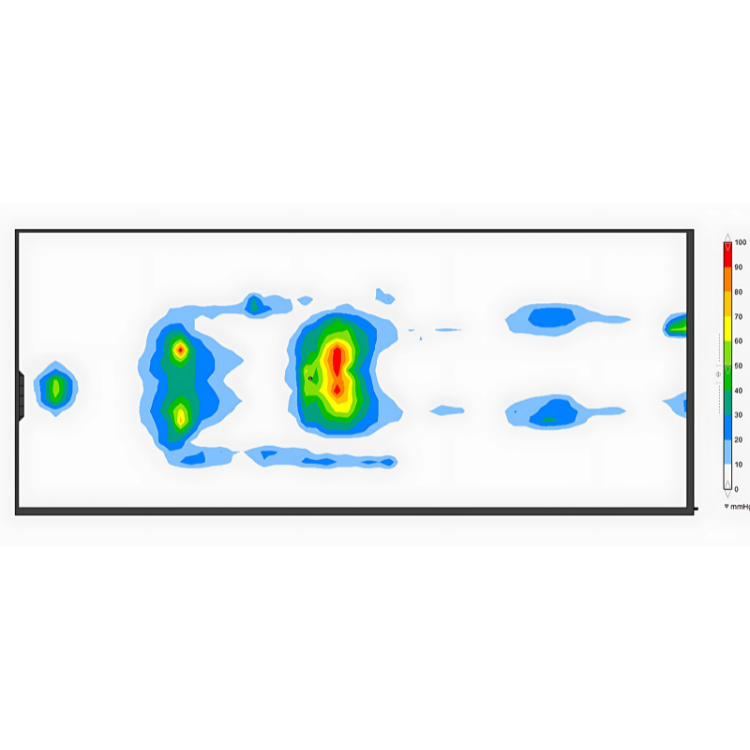

Ideal Mattress Performance
The padded mattresses are developed and manufactured according to pressure distribution technology test results to ensure optimal comfort and pressure relief.

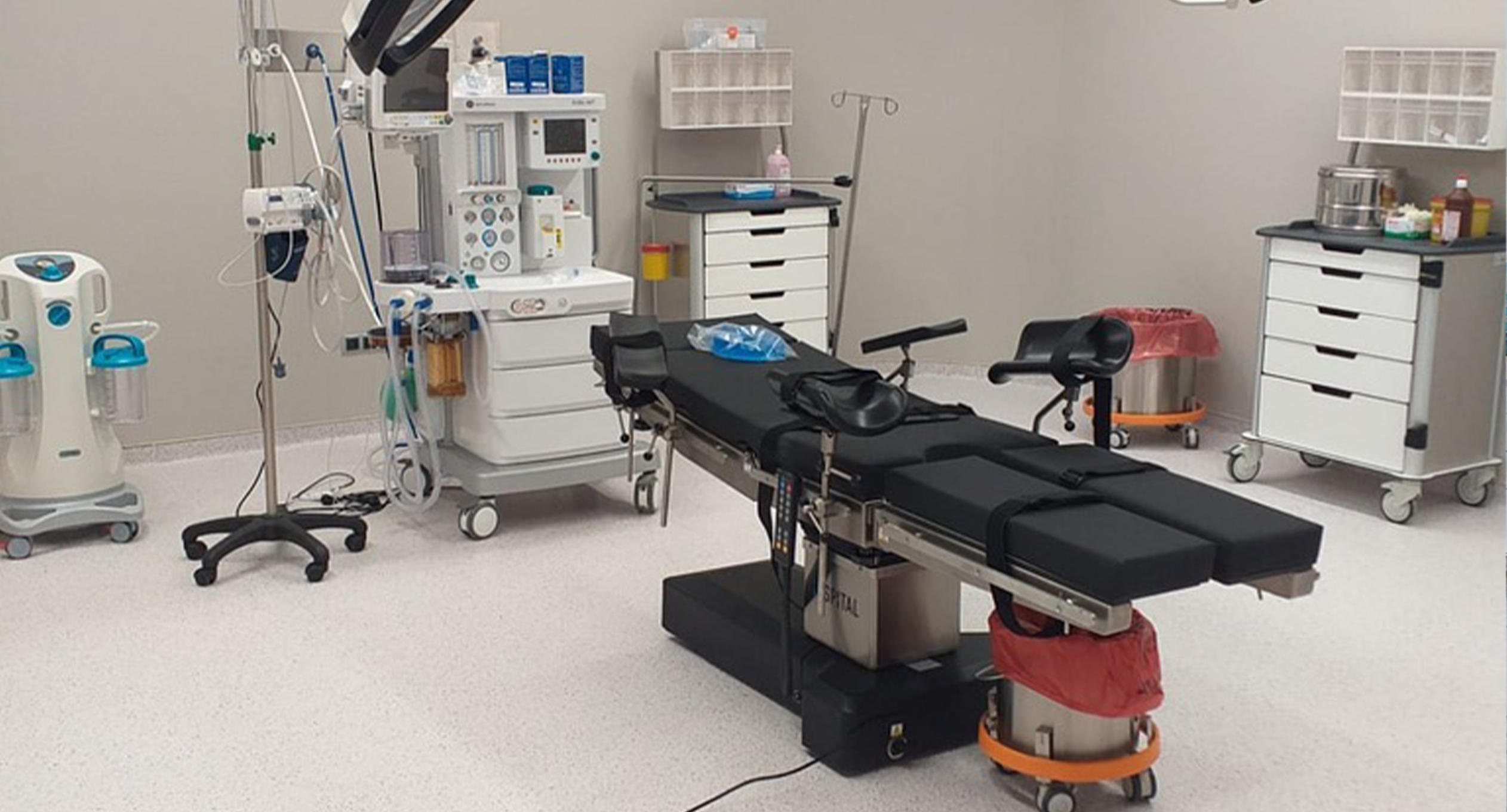

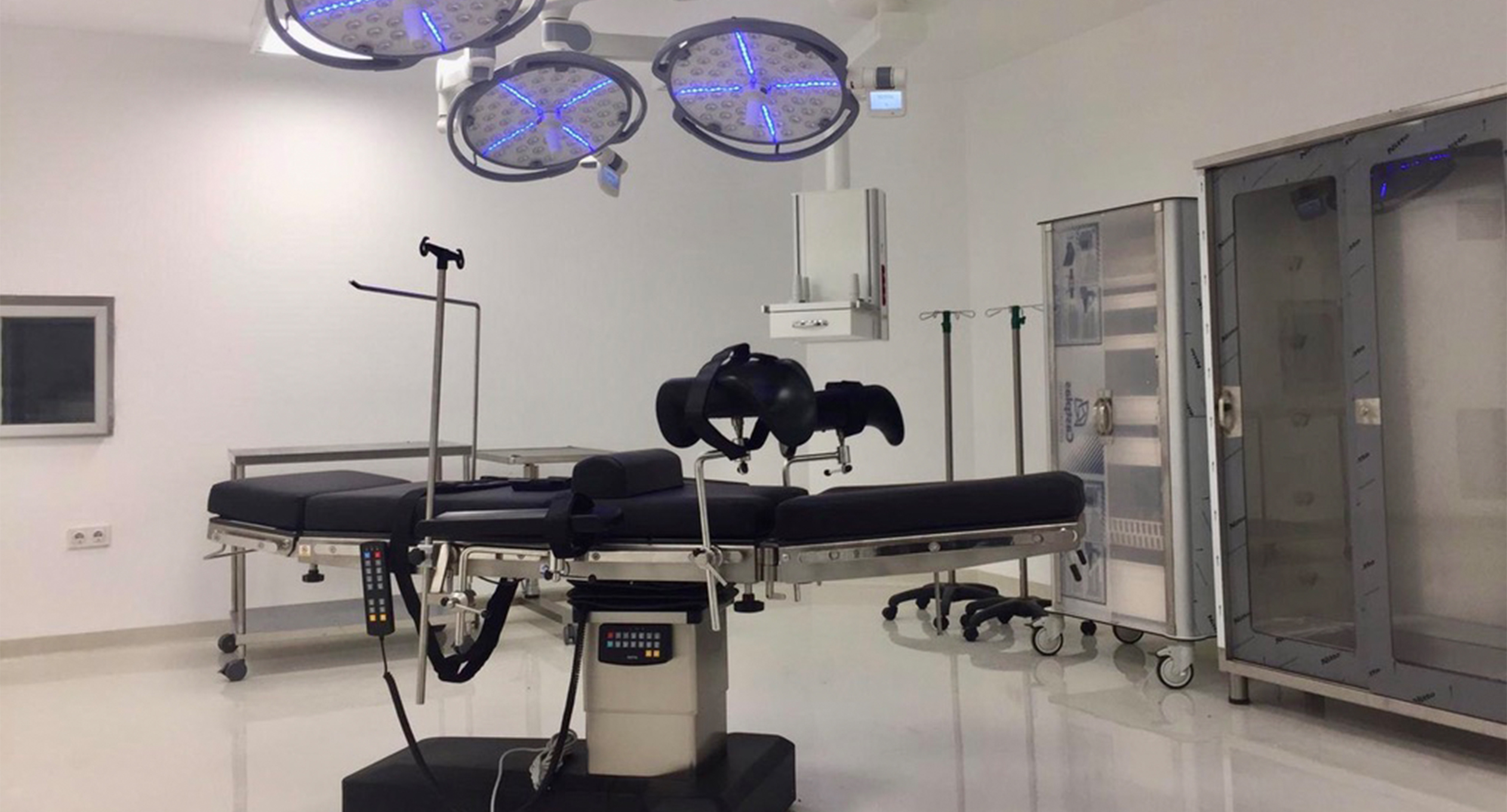

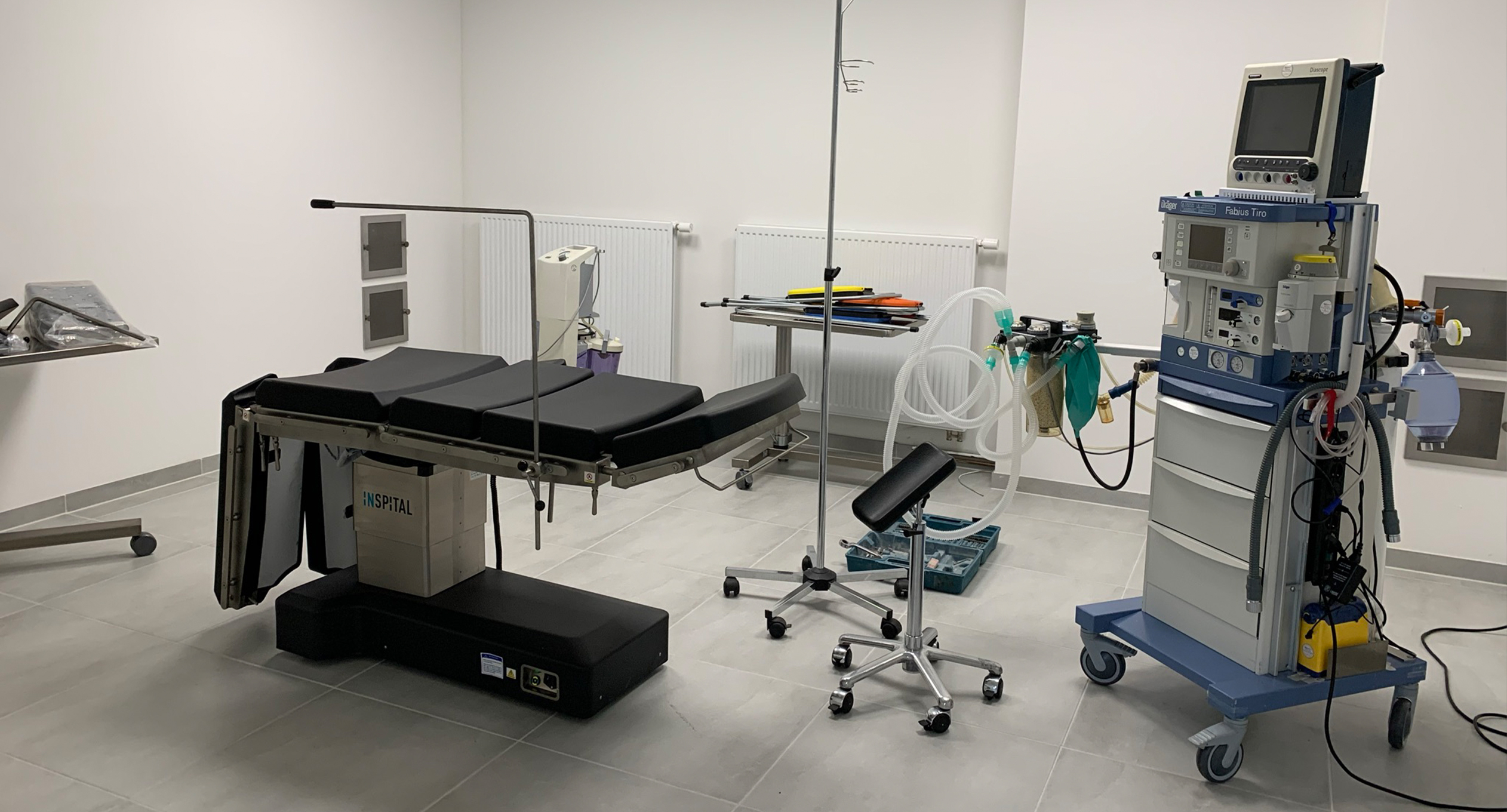

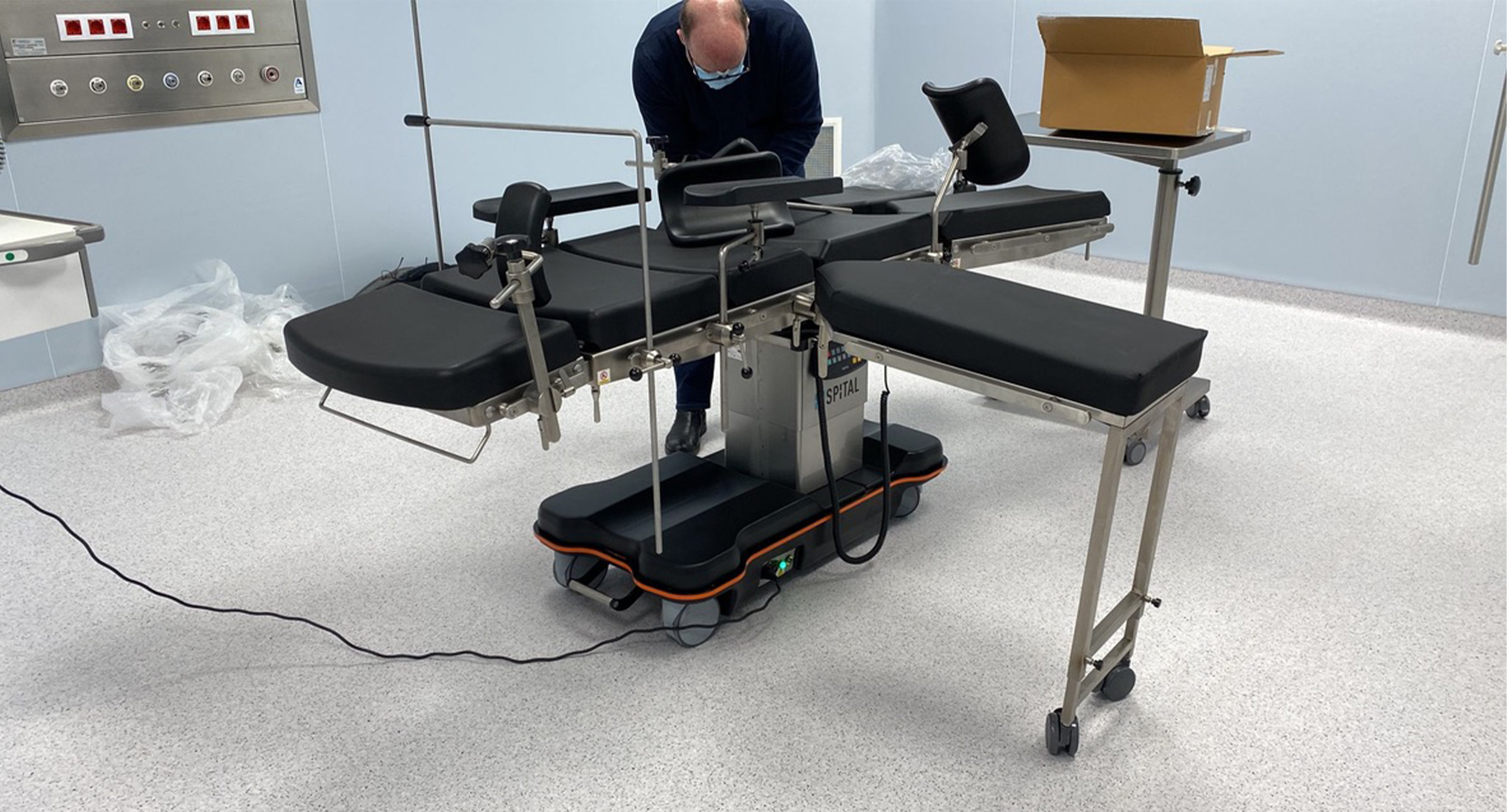

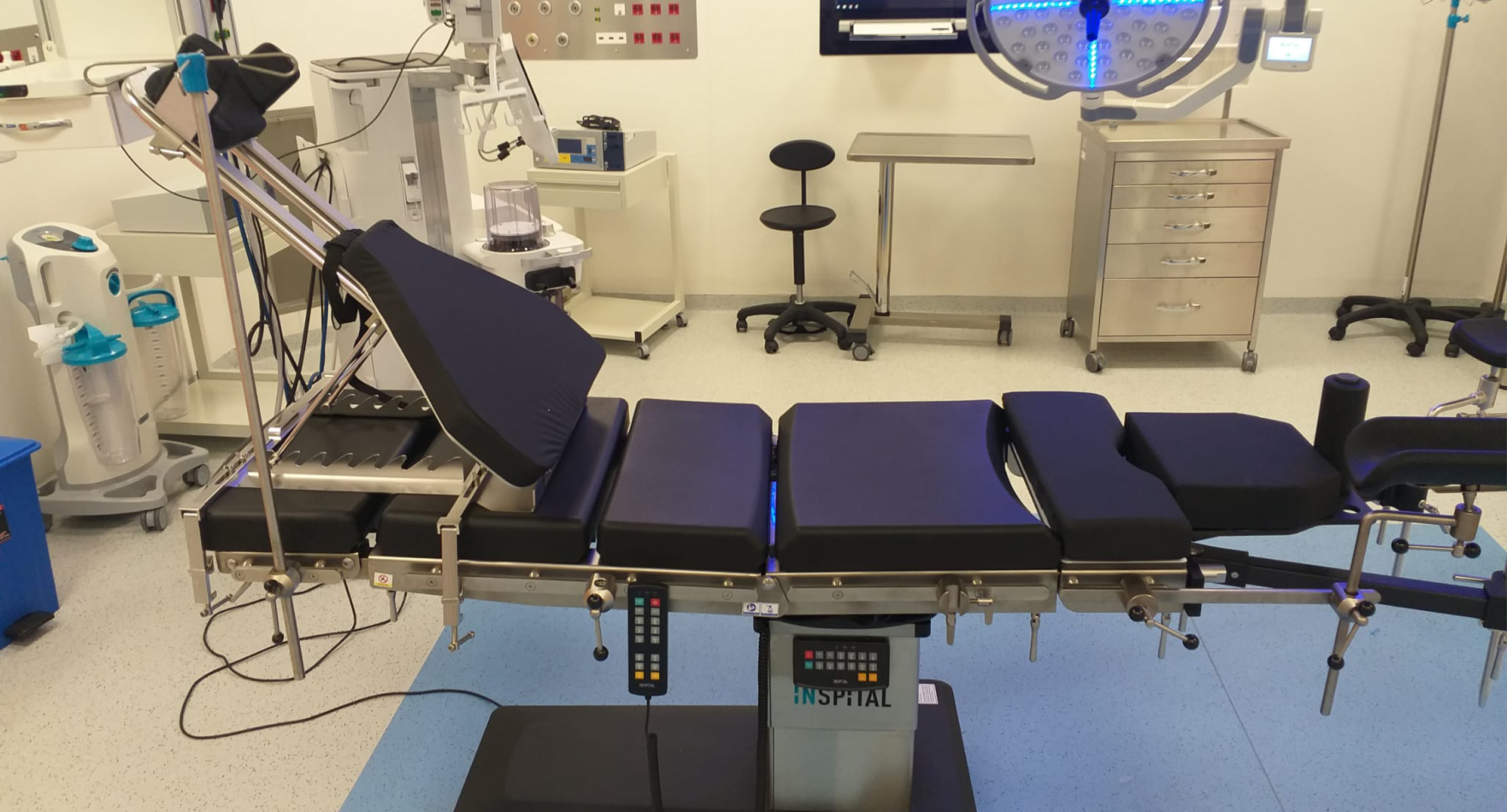

Customer Photos
