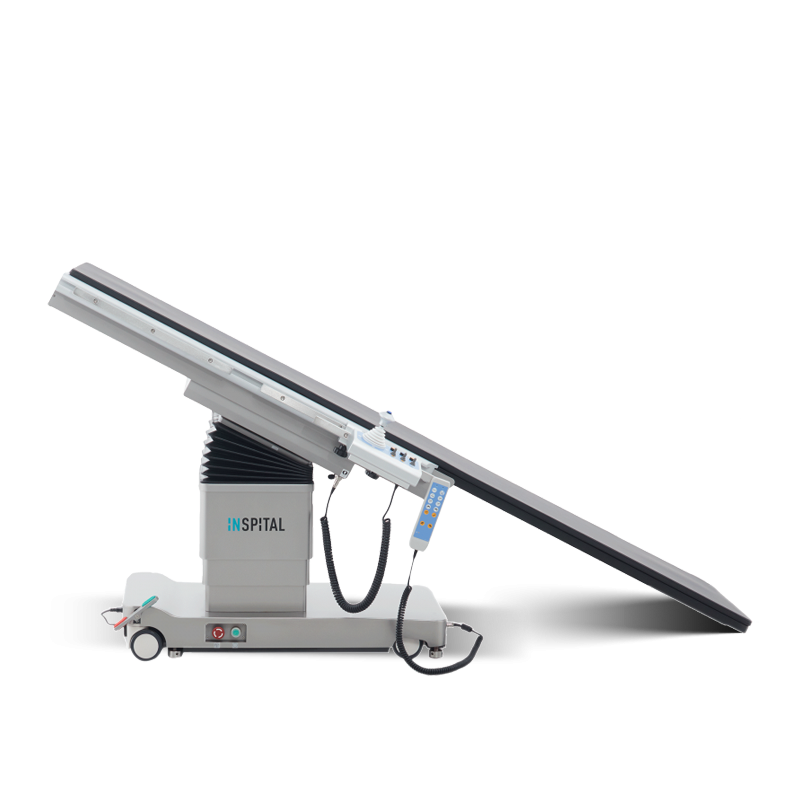

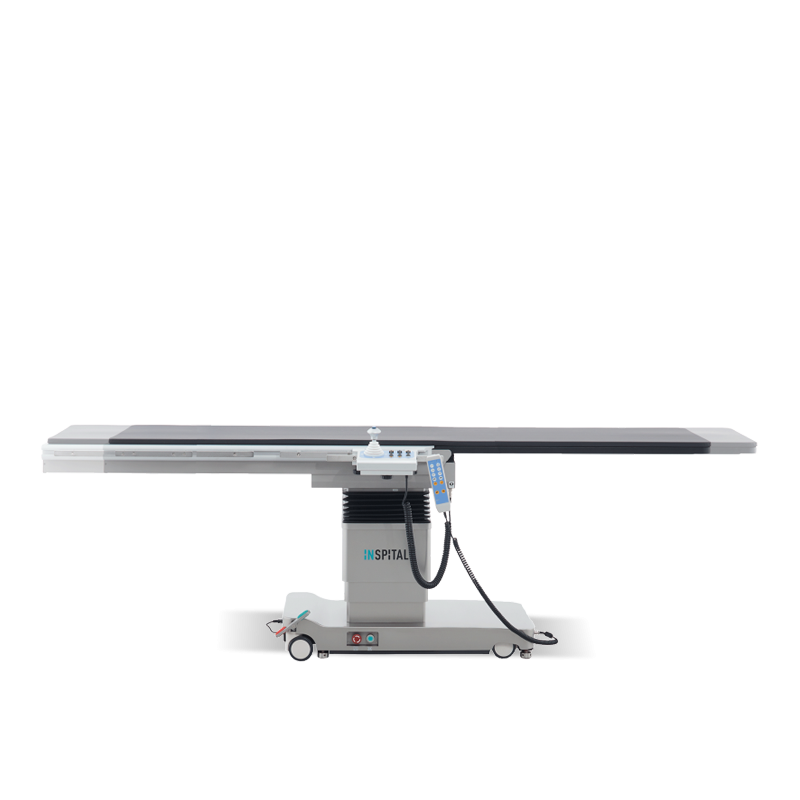

Mobile Carbon Fiber Operating Table for Imaging Procedures C-Arm Imaging Table OT80.30
Inspital imaging tables feature a lightweight carbon fiber tabletop that ensures excellent X-ray transparency while maintaining a high load-bearing capacity. They deliver maximum imaging quality with minimal radiation exposure, making them ideal for surgical and interventional radiology procedures. A viscoelastic mattress overlay provides enhanced patient comfort.
Our experts are ready to offer you the most suitable solutions.
General Features
- Control panel with precision joystick
- Compatible design
- High radiotransparency
Technical Specifications
| Technical Specifications | |
|---|---|
| Width x Length: | 620 x 2450 mm |
| Height adjustment: | 750 - 1140 mm |
| X-ray window: | 1860 mm |
| Longitudinal shift: | 790 mm |
| Lateral shift: | 215 mm |
| Trendelenburg: | -18° / +18° |
| Lateral tilt: | -15° / +15° |
| Maximum patient weight: | 200 kg |
Downloads
Download Files
The Highlights.
Kidney Bridge (Optional)
The integrated kidney bridge is adjustable up to 140° (165 mm) and allows for optimal positioning for corresponding surgical procedures.
Longitudinal Shift Function
The 300 mm long longitudinal shift allows easy access for X-ray imaging without disturbing the sterile environment.
Functional Design
The in-hospital operating tables are designed to easily adapt to various surgical procedures and optimally meet the respective requirements.
Multiple Control Units
• User-friendly hand and column controls
• 7 adjustable functions, including braking system
• 7 adjustable functions, including braking system
T-Base
The T-base provides optimal access for the surgical team and OR equipment. The corrosion-resistant stainless steel design ensures durability and reliability in demanding OR environments.
Ideal Access for C-Arms
The radiolucent tabletop enables high-quality imaging in all areas and facilitates access for the C-arm.
Ideal Mattress Performance
The padded mattresses are developed and manufactured according to pressure distribution technology test results to ensure optimal comfort and pressure relief.
