High Pressure Reducer, Single Regulator
GZ70.10

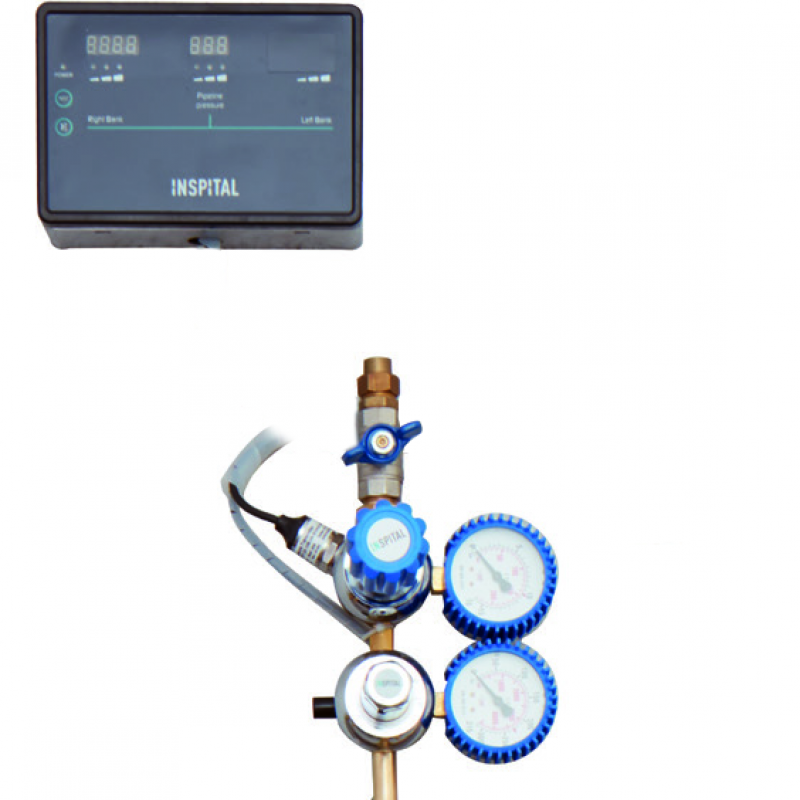

High Pressure Reducer, Single Regulator

INSPITAL High Pressure Reducer provide safe pressure reduction of medical gases between the cylinders and the delivery system. It is designed to regulate line pressure between 5 to 4 bar. All components are degreased for oxygen use.

Our experts are ready to offer you the most suitable solutions.

  • Gases: Oxygen, Nitrous Oxide, Carbon Dioxide
  • Working Mode: 2 stage, 1 regulator
  • Inlet dia: 1/2”
  • Outlet dia: 22 mm
  • Inlet pressure (max): 220 bar
  • Outlet pressure: 4 - 5 bar
Explanation Model No
W/o alarm 100 m3/h GZ70.10
With alarm 100 m3/h GZ70.20
W/o alarm 40 m3/h GZ70.30
With alarm 40 m3/h GZ70.40
