Double Head with Arm Mounted Medical Monitor (With Camera)

While the high-resolution camera provides good quality images, the monitor provides the opportunity to see the surgical site more clearly. Besides this, the monitor can be used for educational purposes. The light intensity of 160,000 Lux provides a clear view of the surgical area and does not cause eye fatigue.

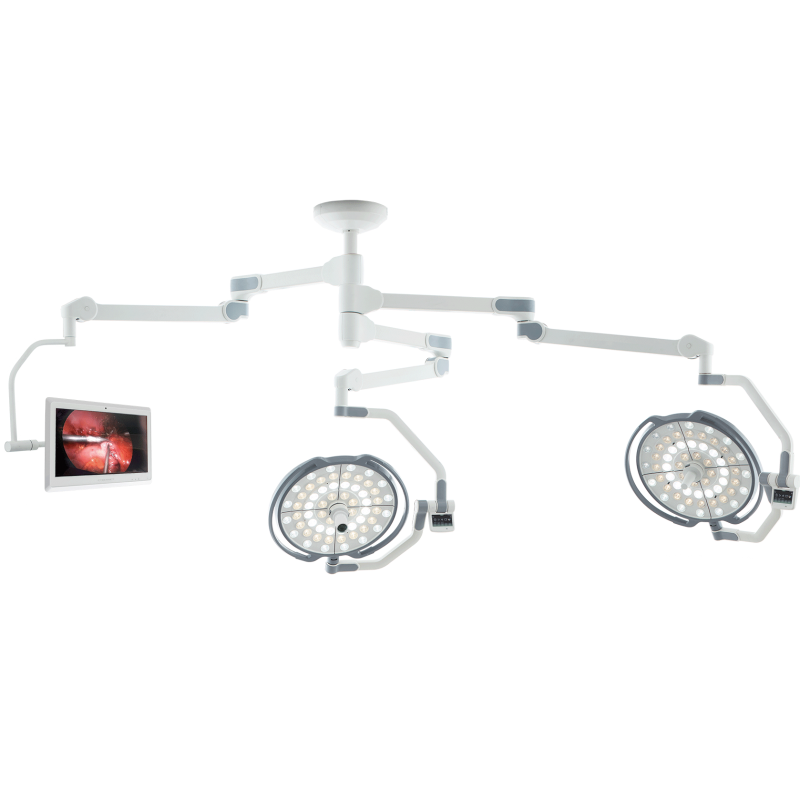

LD20.53 designed for big operating rooms with multi-needs. LD20.53 is a double-headed operating lamp, equipped with an HD camera and medical grade monitor on arm.

Get an Offer

The AIC feature minimizes shadow formation by turning off the light on the blocked quarter of the operating light. When using this feature, the light intensity does not decrease and the power of the blocked area is transferred to the other quarters.

Adjusting the light temperature between 3000 K and 5000 K ensures that colors of tissues in the surgical can be seen maximally accurate.
Laser Positioning feature provides fast and effective light intensity adjustment and focusing in the operation area.
The lamp head is made of chemical resistant, durable ABS material.
Each LED module can be removed and replaced with a new one individually.
Lifetime of LED modules is 60.000 hours. Which means that during this period, approximately 15,000 coronary artery bypass surgery (one of the longest surgeries), can be performed.

Technical Features
Max. Illumination power, in 1 m	160.000 Lux
Light head diameter	Ø670 mm
Color temperature	3000 K - 5000 K
Color rendering index, Ra CRI	96%
Dimming Range	% 1 – 100
Light Field Diameter d10	24 – 36 cm / 9.5”- 14.2”
Light Field Diameter d50	13 – 28 cm / 5.1” – 11”
Number of LED modules	60
Lifetime of LED	>60.000 h
Degree of turbulence (standard value 37.5% max.)	29%
Depth of the volume of light L1 + L2 at 20%	130 cm / 51.2”
Depth of the volume of light L1 + L2 at 60%	76 cm / 30”
Camera	1080p Full HD Camera
Irradiance at nominal illuminance	200 W/m2
Additional options	Touch Screen Pro Control Unit, Camera, Monitor, Battery Back Up
