Copper Tubes
MB10.01

Copper Tubes

Pipeline solutions for medical installations

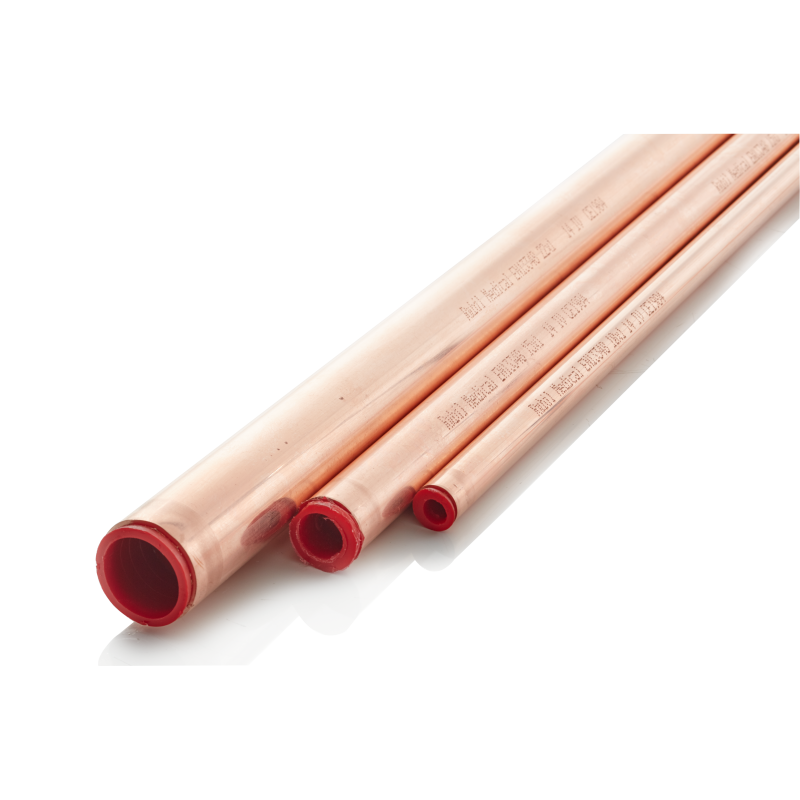

  • Medical copper tubes ares degreased and marked according to EN 13348 System in accordance with requirement of the medical gas market.
  • Staright length copper tube is available in 4m lengths and individually red capped.
  • We have stocks of medical copper tubes available for immediate dispatch.
  • Special wooden cases packaging is suitable for exporting delivery.

Specific Benefits Include:

  • Specially cleaned copper tubes for medical gas and vacuum systems. Supersending earlier "hybridised" copper tube standards such as BS EN 1057 & BS 2871 Part 1 quoted in HTM 2022 & NHS engineering spec.
  • Tighter limits on cleanliness determination.

Our experts are ready to offer you the most suitable solutions.

Get an Offer
Model no Explanation Thickness Working Pressure Length
MB10.01 8 mm 1,0 mm 84  bar 4 m
MB10.02 10 mm 0,6 mm 84  bar 4 m
MB10.03 10 mm 1,0 mm 84  bar 4 m
MB10.04 12 mm 0,6 mm 77  bar 4 m
MB10.05 12 mm 1,0 mm 77  bar 4 m
MB10.06 15 mm 0,7 mm 63  bar 4 m
MB10.07 15 mm 1,0 mm 63  bar 4 m
MB10.08 22 mm 1,0 mm 58  bar 4 m
MB10.09 28 mm 1,0 mm 51  bar 4 m
MB10.10 28 mm 1,5 mm 51  bar 4 m
MB10.11 35 mm 1,0 mm 40  bar 4 m
MB10.12 35 mm 1,5 mm 40  bar 4 m
MB10.13 42 mm 1,0 mm 42  bar 4 m
MB10.14 42 mm 1,5 mm 42 bar 4 m
MB10.15 54 mm 1,5 mm 27  bar 4 m
MB10.16 54 mm 2,0 mm 27  bar 4 m
MB10.17 76 mm 1,5 mm 29  bar 4 m
MB10.18 76 mm 2,0 mm 29  bar 4 m
MB10.19 108 mm 2,0 mm 16 bar 4 m
MB10.20 108 mm 2,5 mm 16 bar 4 m
